    precision tooling for cnc bender

    Ask Lasest Price
    Brand Name : PSLASER
    Certification : ISO9001:2008
    Model Number : 60X60X835
    Price : 200$
    Delivery Time : 2~4 weeks
    Payment Terms : T/T In advance
    Supply Ability : 1000 PCS PER MONTH
    • Product Details
    • Company Profile

    precision tooling for cnc bender

    Material : 42CrMo

    Hardness: 48-52 HRC

    cnc press brake punch and die

    punch : 30 degree 45 degree 60 degree 85 degree 88 degree

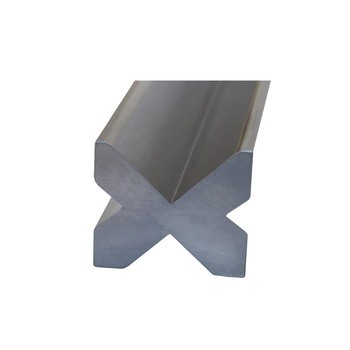

    die singllve V die two v die and multi v die


    We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :

    quenching + tempering + 860 °C Oil quenching + 390°C Tempering .

    At last ,the tolerance of tooling we can control is +/-0.02mm

    Range:

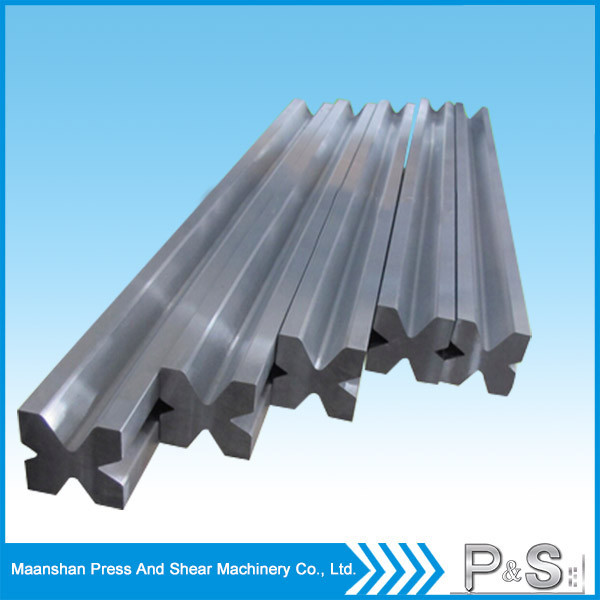

    we can manufacture Acute tooling, Goose neck punch ,Single V die ,2 V die ,Multi V die block, die holder and upper adaptor for punch.
    Popular size for the tooling is:26*97*835mm ,26*150*835mm, 60*60*835mm, 56*120*835mm

    The longest bottom die we can make is up to 10 meters ( size:220*220*10,000mm)

    Case:Year 2014, we manufactured one upper tooling (size : 25*165*6100mm ) and bottom tooling(120*120*6100mm) to one of famous machinery dealer in Australia .precision tooling for cnc benderprecision tooling for cnc benderprecision tooling for cnc benderprecision tooling for cnc bender
