We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :

quenching + tempering + 860 °C Oil quenching + 390°C Tempering .

At last ,the tolerance of tooling we can control is +/-0.02mm

Range:

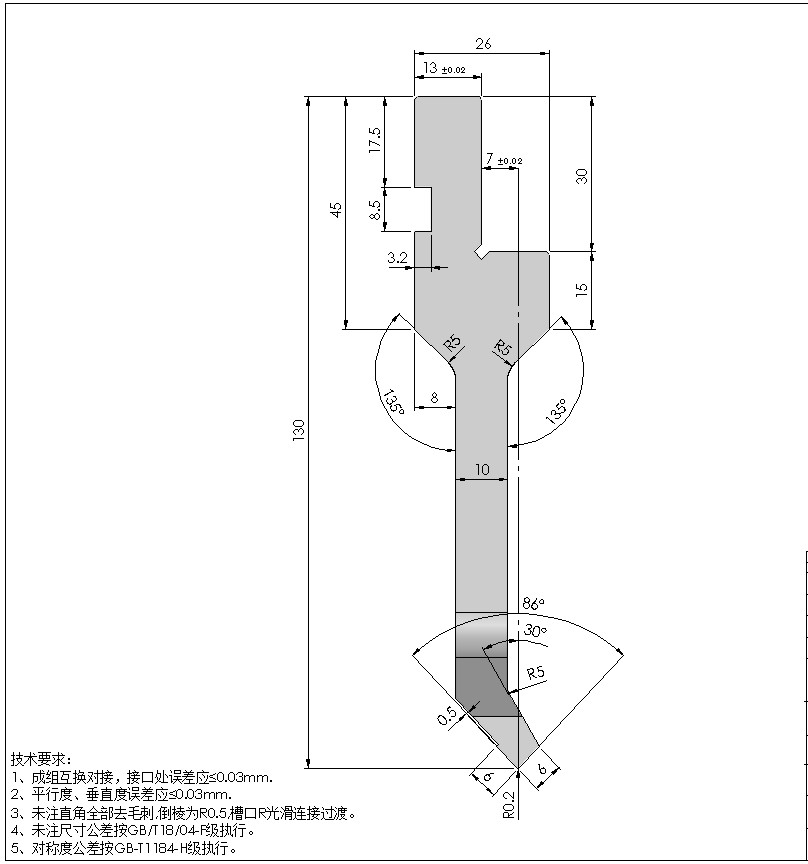

we can manufacture Acute tooling, Goose neck punch ,Single V die ,2 V die ,Multi V die block, die holder and upper adaptor for punch.
Popular size for the tooling is:26*97*835mm ,26*150*835mm, 60*60*835mm, 56*120*835mm

The longest bottom die we can make is up to 10 meters ( size:220*220*10,000mm)

Case:Year 2014, we manufactured one upper tooling (size : 25*165*6100mm ) and bottom tooling(120*120*6100mm) to one of famous machinery dealer in Australia .

Notes:

Also we can make special tooling such as adjustable channel lock bottom die which is used for big capacity press brake to bend thick steel plate
